Converter Modules

MGY-232

RS232 – USB Converter

SR-1510

RS232 – Ethernet Converter

ET-1509

RS232 – HTTP Data Injecter

Many of new computers have not a DB0 serial data connection. This moduler give you a DB9 serial data connection port over USB connection.

This module uses FT232 (FTDI) chips and have a stablised conversion.

RX/TX – CTS/RTS – VCC/Gnd pins and between 300bps / 921.6Kbps data speed applied.

Module 5V 120ma power supplied from usb connection.

MGY-232

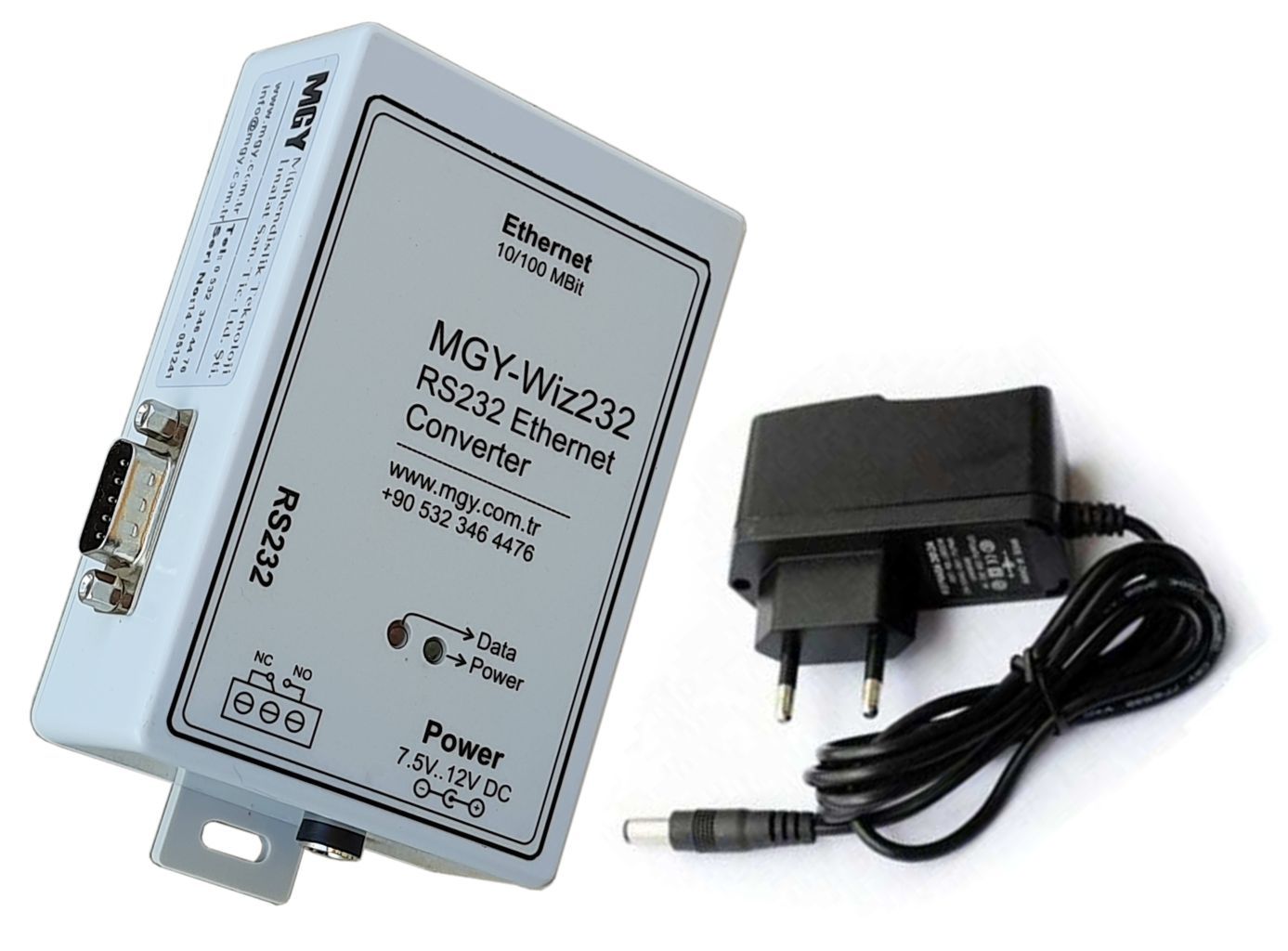

RS232 data is transmitted over LAN or internet. RS232 data may be at TTL level or via MAX232.

Module works on LAN as a server and TCP protocol is is used. All settings may be controlled as web pages.

RS232 Data speed is 9600 baud.

Module 5V 120ma power supplied from usb or DB9 connection.

ET-1509_inside

RS232 data may be send to a web server as http script parameter.

Modul is a client on LAN. Dynamic or static ip selectable. Settings may be done via RS232 commands.

Module 5V 120ma power supplied from usb or DB9 connection.

ET-1509_ModuleN
